SECTIONAL OVERHEAD DOORS

Dock Technik offer a range of Loading bay Industrial Sectional Overhead Doors. Our Services include Industrial Sectional Doors Service, Repairs Sales and Design.

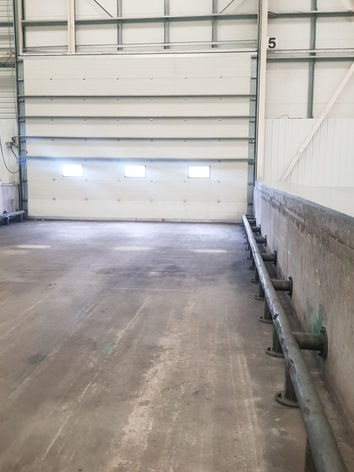

Three loading ramp doors at distribution
dock leveller ce mark

DT-SOD

SECTIONAL OVERHEAD DOORS

PRODUCT DESCRIPTION

The Dock Technik sectional overhead door is very versatile with a wide range of sizes, track layouts and activation options available. With its high insulation performance, durability and safety features it is designed to provide reliable access over many years. Our door meets the EN 13241 1:2003 standard for quality and is supplied in a 40mm insulated panel as standard although 80mm is available for a higher level of insulation.



As our sectional overhead door is primarily installed on loading bays, we offer a range of integration options:



  • Interlocking to external traffic light and/or dock leveller for safety

  • Interlocking to internal dock lights for energy efficiency

  • Integration into a loading bay safety system

Product Detail

  • High lift, standard lift and vertical lift track options

  • Manual or motorised

  • Push button, floor loop and fob activation options

  • Variety of colours and finishes

  • Window and glazed panel options available





Certification and Performance



  • Doors to comply with BS EN 13241-1:2003 + A1 : 2001

  • Mechanical Aspects: Pass (BS EN 12604)

  • Requirements for safety in use of power operated doors: Pass (BS EN 12453)

  • Wind Pressure: Class 3 (BS EN 12424) – Doors to achieve higher wind load classes are available on request

  • Water Penetration: Class 3 (BS EN 12425)

  • Air Permeability: Class 2 (BS EN 12426) – Offering an air tightness of 12m3/m2h at a pressure of 50Pa.

  • Air Leakage: Class 3

  • Acoustic Rating: 25dB

  • CE marked with manufacturers declaration of conformity.
